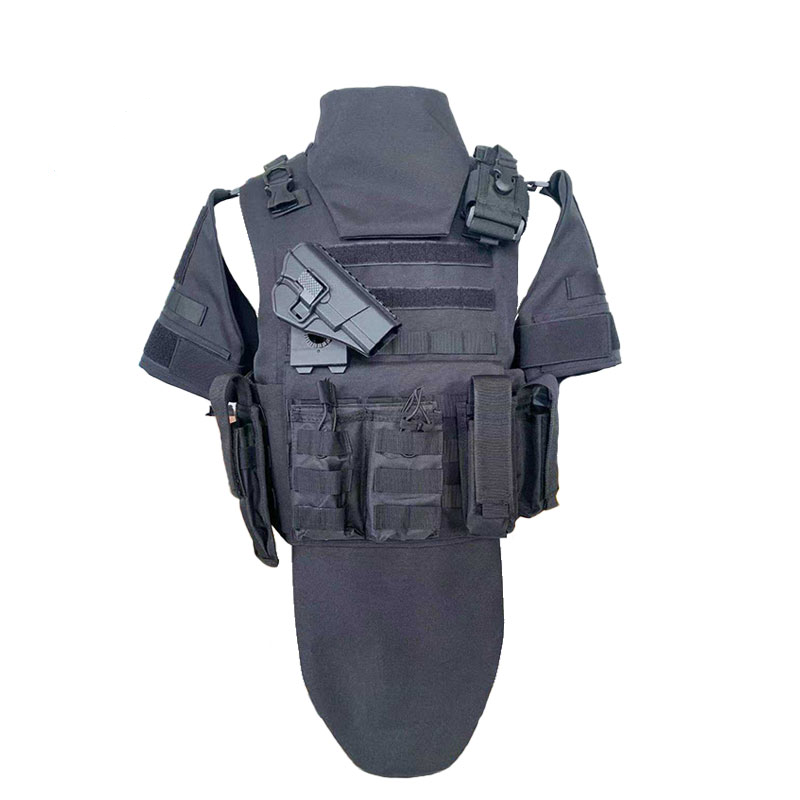

The full-protection body armor is composed of arm guards, crotch guards, neck guards, chest guards, and two inner tanks. Compared with general bulletproof vests, the protective area is further enlarged, and the protection of life safety parts is strengthened. Requirement for different levels of protection. Bulletproof inserts with different protection levels are soft, comfortable to wear, flexible in movement, excellent in elastic performance, aging resistance, waterproof, moisture-proof, and UV-proof. They are the first-line protective equipment for first-line combat and duty.
Fabric 900D Oxford cloth three-level bullet-proof inner core weight: 4.714kg outer jacket weight: 1.516KG whole set weight: about 6.23kg
Protective layer structure: The protective layer structure of bullet-proof and stab-resistant clothing is composed of 45 layers of polyethylene fiber non-woven fabric (four layers of orthogonal) + 1 layer of 4.5mm thick foam.
Composition: Bulletproof and stab-proof clothing consists of a jacket, a bulletproof layer, and a protective cover of the bulletproof layer. The jacket is removable and washable, and the shoulder and waist sizes can be adjusted.
The sealing performance of the sleeve: The protective layer is sealed with an impervious and impervious black protective sleeve, and the sealing edge is uniform. The protective cover material has water seepage resistance, and the hydrostatic pressure resistance is not less than 18kPa
Wearing flexibility: It is flexible to wear and easy to put on and take off. After wearing, the free movement of the arms and the kneeling, jumping, running, pitching, turning and other movements of the human body cannot be obviously restricted.
Protected area: Protected area: 0.45㎡
Room temperature anti-ballistic performance: Use the 1979-style 7.62mm light submachine gun and the 1951-style 7.62mm pistol bullet (lead core) for testing. In the case of effective hits, the bullet is blocked and the maximum recess depth should be less than or equal to 25mm.
Water immersion and ballistic resistance: At room temperature, the ballistic and stab-resistant clothing shall be soaked in water for 30 minutes, and then the ballistic resistance test shall be carried out. In the case of an effective hit, it can resist the bullet, and the maximum depression depth of the backing should be less than or equal to 25mm.
High-temperature ballistic resistance: After the high-temperature test (+55℃±2°C, constant temperature 4h), test the ballistic performance within 15min. In the case of an effective hit, the bullet is blocked, and the maximum depression depth of the backing is less than or equal to 25min.
Low-temperature anti-ballistic performance: After the low-temperature test (-20℃±2℃, constant temperature 4h), carry out the anti-ballistic performance test within 15min. In the case of an effective hit, the bullet is blocked, and the maximum depression depth of the backing is less than or equal to 25min.
Bulletproof damp and heat performance: After the damp and heat test (70℃±2℃, relative humidity 80%, 240h), carry out the anti-ballistic performance test, in the case of an effective hit, block the warhead, and the maximum depression depth of the backing is less than or equal to 25min.
Body armor rating: Level 4
Executive standard: "GA 141-2010 police protective clothing".
